UVM Register Layer Classes Overview:
The UVM register layer classes help create a high-level, organized model for the memory and registers in a design under verification (DUV). Think of it as a blueprint that allows you to read and write to these memory areas easily.
- Base Classes: There are basic templates that need to be extended to match the actual registers and memories in the design.
- Abstraction: It simplifies operations, so you can move tests from smaller parts to the whole system without changing anything.
- Flexibility: You can move fields around without changing your tests.
- Test Sequences: There’s a library of ready-made test cases to check if everything is working correctly.
- Hierarchy: The register model is structured in levels that match the design. These levels can include registers, files, and other blocks.
- Access Paths: It supports both front and back-door access to ensure everything is working correctly and to improve performance.
- Multiple Interfaces: Designs with several interfaces and shared registers/memories across them are supported.

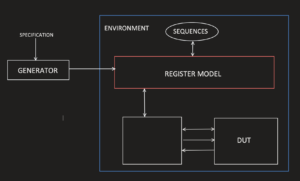

- Specialization: Most classes need to be extended to create a model that fits your design. Since this can be complex, model generators are used to automate this process based on a specification, ensuring the model is always up-to-date and accurate.
